Describe the work before selecting the electrical installation
A useful shed electrical brief starts with what happens inside the building. Parking a car, repairing bicycles, using stationary woodworking equipment and storing a freezer create different lighting and power needs. A list that says lights and a few sockets leaves the electrician to guess how you intend to use the space. Describe the activities, the equipment and the places where people will stand or move.
This is a planning task for the owner, not an electrical design exercise. Energy Safe Victoria advises householders to engage a registered electrical contractor for electrical work. Ask that contractor to assess the existing supply and design the installation. Do not choose cable sizes, protective devices or circuit arrangements from a generic shed article. You can still prepare a thorough brief without opening a switchboard or touching electrical components.
Mark confirmed needs separately from possible future uses. A machine you already own can be identified precisely. An idea to buy equipment later should be described as a future allowance, with its uncertainty made clear. This distinction helps the electrician explain which decisions are worth making now, what can be left flexible and what additional information is needed before a reliable recommendation can be made.
Build an equipment schedule the electrician can use
List fixed machines, portable tools, door motors, ventilation equipment and items that may operate unattended. For each, provide the make, model and accessible manufacturer documentation. Record how often it is used and what else is likely to run at the same time. A workshop where a dust extractor operates with a machine is different from one where tools are used individually. The relationship between equipment matters as well as the number of items.
Use manuals and information already available to you. Do not remove covers, expose wiring or move heavy equipment to photograph a hidden rating plate. If relevant information is inaccessible, tell the electrician what is missing. A photograph of an accessible label can be useful, but it should be linked to the correct machine in the schedule. Similar-looking tools may have different requirements, so a generic photograph from an online listing is a poor substitute for the actual model.

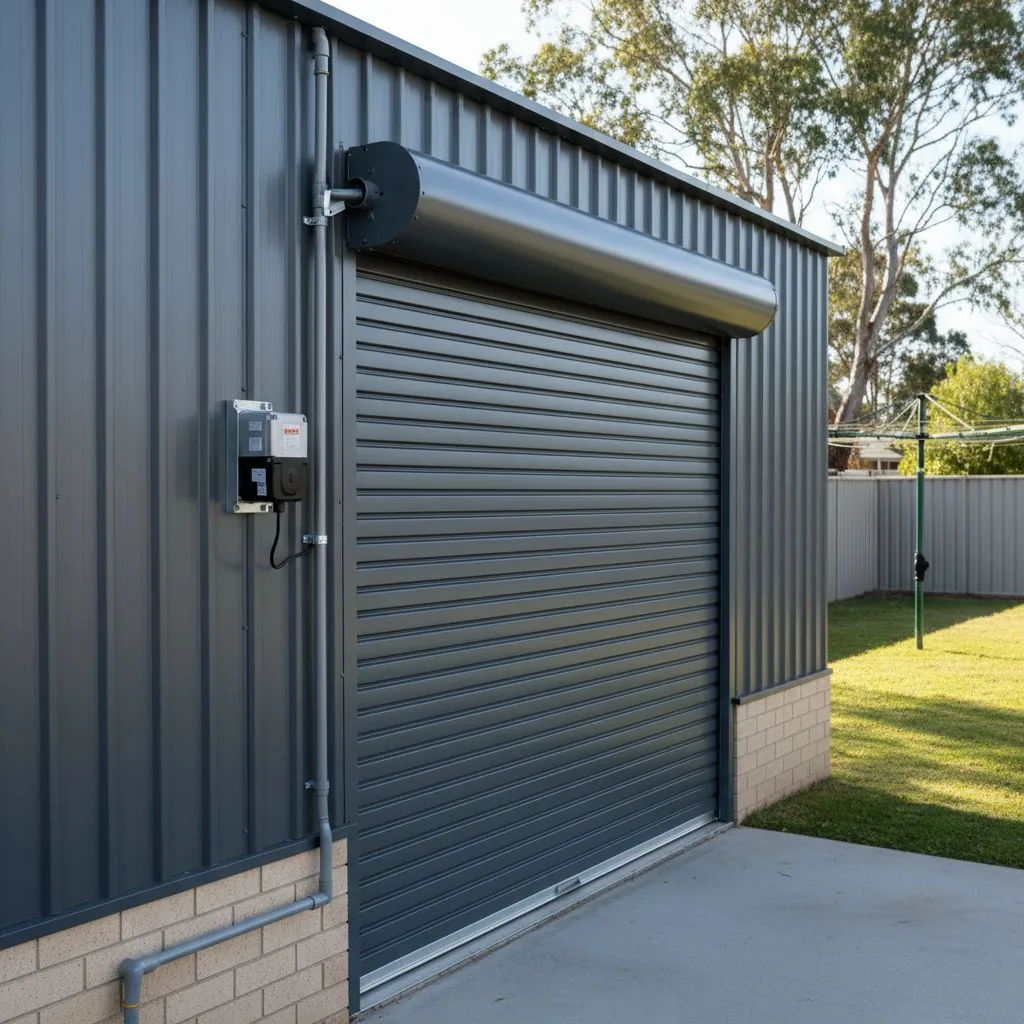

Include less obvious loads and connections. A door operator, security equipment, battery chargers or a network connection may be overlooked when the conversation focuses on large machines. Describe whether you expect to work with the main door closed, whether another person will use the space simultaneously and whether an outage would affect stored goods. The electrician can then assess the installation against realistic operation rather than a count of wall outlets alone.
Put the layout on the same drawing as the power needs
Draw benches, cupboards, machinery and vehicle parking before discussing outlet positions. An outlet located on an empty plan may end up behind a fixed cabinet or directly where a long workpiece needs to pass. Show the front of the workbench, the operator position and where portable tools will normally be used. Tell the electrician which furniture is fixed and which may move as the workshop develops.
Think about the full operating space of storage. Cupboard doors open, drawers pull out and mobile benches need somewhere to park. Electrical equipment should be coordinated with those movements and with the door mechanism. Ask the designer and electrician to identify areas that must remain accessible. Avoid treating wall space reserved for a switchboard or control equipment as spare shelving space. The workshop layout guide explains how to map these competing uses.
Describe the cable-management problem rather than proposing a makeshift solution. If the intended layout would require leads across a walking route or through a doorway, show that on the drawing. Ask the electrician to develop an appropriate arrangement for the task and environment. A permanent workshop should not depend on an improvised collection of extension leads because the original brief omitted where work would actually happen.
Plan task lighting, general lighting and entrances separately
General lighting helps people move around the shed and find stored items. Task lighting supports the activity at a bench or machine. Entrance lighting helps people approach and leave. These functions can overlap, but describing them separately makes shortcomings easier to spot. One bright fitting in the centre may still leave a person working in their own shadow at a wall bench or searching through a dark cupboard.
Explain where you stand and which direction you face during the main tasks. Fine assembly, reading labels, inspecting a surface and moving bulky materials require different visual conditions. Tell the lighting designer about reflective metal surfaces, screens or glossy bench tops that may create glare. Ask how the proposed arrangement performs when a car is parked, the main door is open or tall storage is installed. Assess the completed layout rather than an empty shed shell.
Daylight also deserves a place in the brief. Record when you usually work and where direct sun reaches the proposed windows or door opening. A window can provide useful light while also occupying valuable storage space. Ask for the daylight and artificial lighting plans to be considered together. You do not need to prescribe a universal brightness figure; explain the task clearly and have the professional select and verify a suitable lighting solution.
Discuss control from the places people enter
Consider how someone enters after dark. A person using the pedestrian door may need a different control position from someone driving through the main opening. Describe the route from the house and the first area that needs light. Ask how controls will be identified and used without walking across an unlit workshop. If several people use the shed, straightforward labelled controls may be more useful than an arrangement only one person understands.
Outside lighting should be discussed in relation to the approach, neighbouring properties and the driver's view. Explain where a vehicle waits and where pedestrians pass. A fitting that points towards an approaching driver may create glare instead of improving visibility. Ask the electrician to select and position equipment for the actual outdoor conditions. Do not assume that a fitting suitable inside a dry lined room is appropriate at an exposed shed entrance.
Automation is optional. Sensors, timers and connected controls should serve a defined task, such as illuminating the walking route or avoiding unnecessary lighting when the shed is empty. Ask what happens if the network is unavailable and how ordinary operation remains possible. Record who configures the equipment, who receives access credentials and how settings can be changed later. Convenience is useful only when the people using the building understand the controls.
Resolve interfaces before the slab and lining stages
Some electrical planning decisions affect work by other trades. Routes between the house and shed, penetrations, equipment mounting areas and any provision below a slab should be coordinated before those elements are completed. Ask the electrician and builder to agree the locations and responsibilities. Do not place conduits or drill structural members yourself based on an assumed future route; the professionals need to determine what is suitable for the installation and structure.
Give the electrician the proposed lining and insulation details. These can affect access, fitting positions and the way work is sequenced. The existing insulation and condensation guide addresses the building environment, while your electrical brief identifies the tasks performed within it. Ask the team to coordinate both sets of information so lighting and controls remain accessible after the interior is finished.
Keep revisions visible. If a workbench moves, a door changes type or a cupboard is added, notify the electrician before installation. A small layout change can make an agreed outlet or switch position impractical. Ask for a marked drawing that records the final arrangement, and save any agreed future provisions with it. The value of early coordination is not a promise that every later change will be easy; it is a clear record of what has actually been designed and installed.
Hypothetical example: bicycle work and occasional machinery
Imagine a garage used for parking on weekdays and bicycle repair on weekends. The owner initially asks for several outlets and a ceiling light. During the brief, they identify a wall bench for detailed work, a charging area, a small compressor and a door operator. They also explain that the car often remains parked while repairs are underway. These details change the discussion from a generic fit-out to specific lighting and equipment locations.
The layout drawing shows the bench facing a wall and a cupboard next to the pedestrian entrance. The electrician can now discuss task lighting that is not blocked by the person at the bench, controls reachable from the entrance and the actual equipment requirements. The owner moves a proposed storage cabinet on paper after discovering it would occupy the intended control area. That is a straightforward decision while the interior is still a drawing.
A larger machine remains a future possibility. Instead of guessing its electrical needs, the owner asks what information would be required to assess it and whether any sensible provision can be included now. The completed brief separates the confirmed compressor and chargers from the speculative machine. This gives the electrician a defensible basis for advice and keeps an uncertain future purchase from silently determining the entire installation.
Include commissioning and records in the brief
Before work starts, ask what testing, documentation and demonstrations are included. At handover, have the contractor explain the installed controls and any operating instructions relevant to the equipment. Record the model details for fittings and control systems so replacements or later servicing do not begin with guesswork. Ask for the final circuit identification and drawing information that the contractor provides, without opening equipment to inspect it yourself.
Energy Safe Victoria explains the role of the Certificate of Electrical Safety. Ask the electrical contractor for the documentation applicable to the completed work and keep it with the shed records. The certificate, equipment manuals and layout drawing serve different purposes; one should not be treated as a replacement for the others. Link these records to the overall shed handover checklist.
Your finished planning brief should let another person understand what equipment is used, where people work, how they enter and what remains uncertain. It should also identify the person responsible for electrical design and installation. Bring the equipment schedule and marked layout to that conversation. They are more useful than a guessed power specification and help keep the discussion grounded in the shed you intend to use.
Electrical planning notes
Use this list to assemble your electrician brief. A tick means the information is recorded, not that electrical capacity or an installation detail has been approved.
0 of 5 recorded.
